Nikon Optiphot 100

Upright compound metallurgical microscope based on Optiphot 2,
popular for silicon wafer inspection,
with vertical illuminator converting Nikon
finite 49.5mm to 51mm infinity (Eclipse) (also AO) circular dovetail.
This one has BD objective nosepiece turret with DIC sliders and prisms.

NIkon Optiphot 100 Microscope (no objectives) (S21)

eBay item number:  197513964382
Condition: Used

Description

This item is in the cosmetic condition shown.
It was pulled from a working environment for upgrade
and is guaranteed to be in good working order.
The sale includes only what is shown.
Below is a list of what is included -
(2) CFUMN 10x/25 Eye Pieces






received 22 Jul 2025

some information for DIC   - at microbehunter

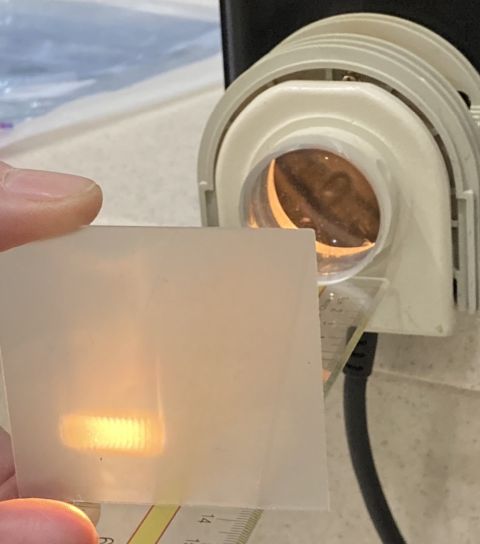

LHS-H100P-1 lamp houses are available, unlike filter holders
that space lamp houses 65mm from universal vertical illuminators,
to which they fasten by 3 screws around a 36mm cylindrical stub.

Operation

Optiphot 100-specific documentation is lacking, but Eclipse LV100D
has a similar vertical illuminator and manual describing DIC operation,
but a single DIC prism slider, instead of per-objective prisms:

Optiphot 200 prisms

crossed Nicols adjustment

Vertical illuminator B.F/D.F cubes

 As delivered, B.F cube was loose.
Remove left side plate (2 socket head screws) to access cubes,
which mount on a dovetail rail, located by spring-loaded detents.

D.F cube has an empty inner tube and 45 degree mirror in outer ring.

Select D.F to use objectives with transmitted light.
