Condensers

Abbe mods for darkfield, phase contrast and circular oblique
AO: 120 Phase turret
Nikon: LWD 0.65; Achr 0.85; Achr 0.9 Swing out; Abbe 1.25; ELWD 0.3 turret as Dark Field Turret; Phase Contrast 1.25; Metaphot Substage Condenser Adapter; Labophot / Optiphot condenser focus rack and pinion; Labophot vs Optiphot substage focus bracket
36mm NA 1.25 with Iris Diaphragm for Filter
Zeiss Flip Top 0.9

Ex CLEAN GLASS Nikon Achr 0.85 Microscope Condenser 25120

*Excellent* condition
The opening and closing of the aperture blades is smooth.
Optical system: *CLEAN GLASS* *CLEAN Visibility*
It does not affect the observation.
I checked it with the naked eye with a strong light: There is no dust.; There is no balsam separation.; There is no haze on inside of the lens.; It has no fungus on inside of the lens.; It has no scratch.

received 9 Dec 2022
Aperture ring moves smoothly, but stiffer than ideal;
otherwise seems as new.

36mm Biological Microscope NA 1.25 Condenser with Iris Diaphragm for Filter

Item: 3256801825752849
Specification: Item Type: Microscope Condenser; Suitable for: biological microscope; N.A.: 1.25 mm; Quantity: 1 piece; It supports a filter with 32 mm diameter (NOT included)

Phase Contrast-2 ELWD 0.3 hack

The intent was to repurpose this ELWD condenser as a darkfield turret.
The turret arrived before the lens.
Had I more carefully read that it was for inverted Diaphots only,
I would have been better prepared for disappointment.

The Phase Contrast-2 ELWD turret interferes with arched supports in -66 stage casting.
It does however barely fit under an Optiphot-1 stage. The -66 condenser rack pinion cannot be removed from the substage casting
without a special tool to engage 4 notches in the pinion bearing retainer.
Unlike that condensor rack, the substage rack seemingly cannot be removed,
even after removing the stop screw,
by simply continuing to raise or lower the coarse focus.

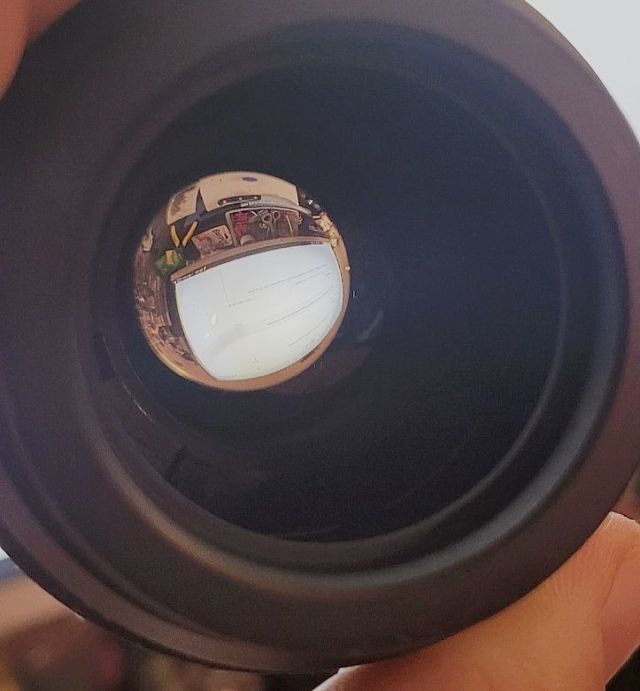

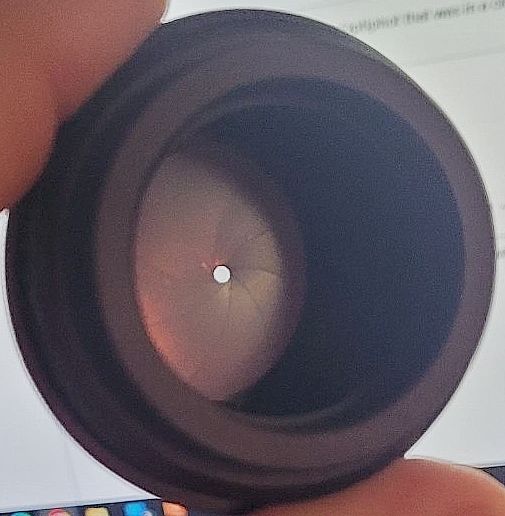

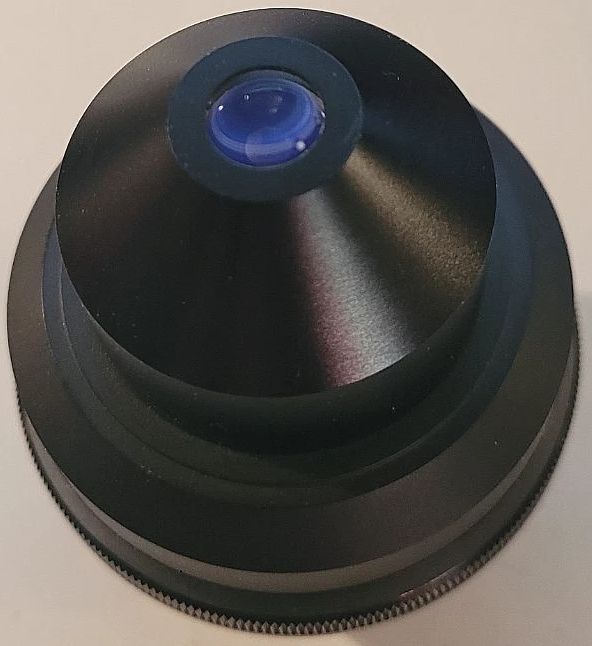

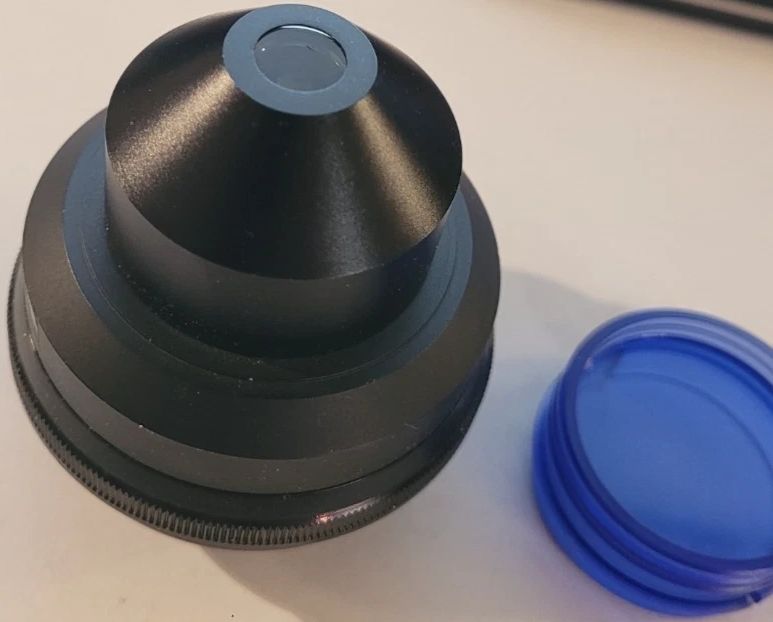

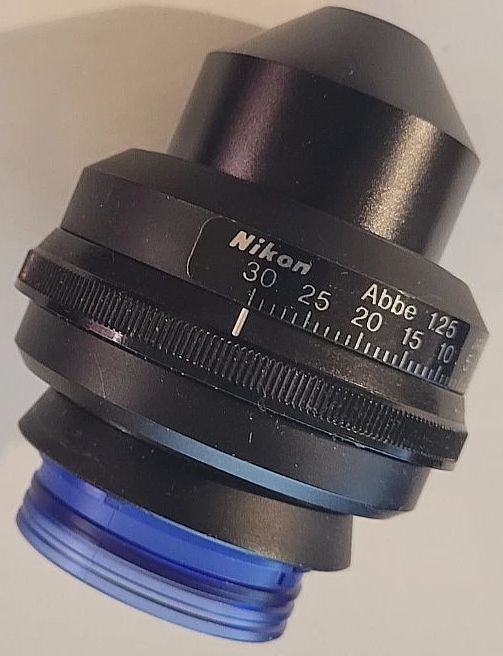

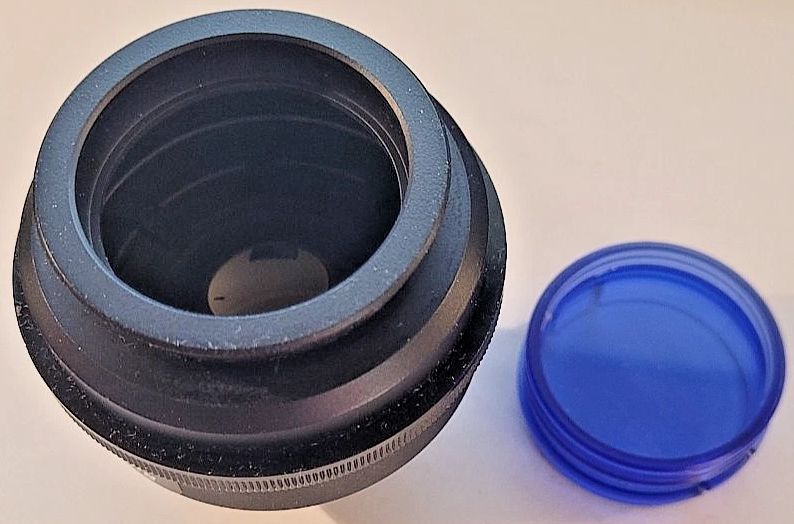

Nikon Abbe 1.25 Microscope Condenser

Carl Zeiss Substage Microscope Condenser Flip Top 0.9 - Great Condition!

Item number: 144045567244

There are several variations on this, many with bent diaphragm arm, which helps for clearance under stages.
Others have different finishes.
Some specify Axio microscope.
This one has a stiff flip-out pivot.
42mm circular dovetail;
Nikon dovetail is 46mm.

Nikon LWD 0.65 Microscope Condenser

With Substage Condenser Adapter, this conderser focuses well under Optiphot-66 frame, although with a fair amount of chromatice aberration with 60x objectives.

Labophot condenser focus rack and pinion

Optiphot vs Labophot

Although they share condenser focus, Labophot stage focus bracket is deeper than Optiphot's,
which has dovetail clamp for stage height adjustment:
