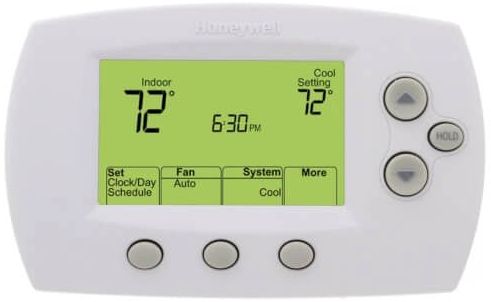

Our main thermostat is a Honeywell TH6220D1002

5.5x3.5 inches. AKA FocusPRO 6000, lacking fan circulate mode
and also cannot be exactly configured for the furnace,
to which it is incorrectly wired.

Our thermostat had corroded AA cells and battery terminals.
Tape over vent holes blocked airflow for thermostat control...

18 Oct

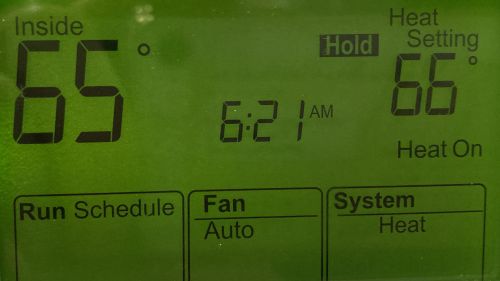

63 Indoor: setting 64 Hold launches Heat On;

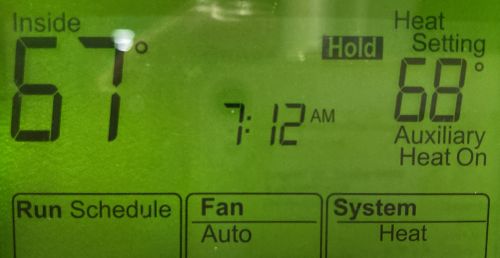

setting 65 provoked Aux Heat.
Setting 66 while 65 Indoor initially also provoked Aux Heat;


System seemingly must be nearly ready to stop
before bumping a degree, to avoid Aux Heat.
Duke Energy offers "smart" Thermostat Control incentives,

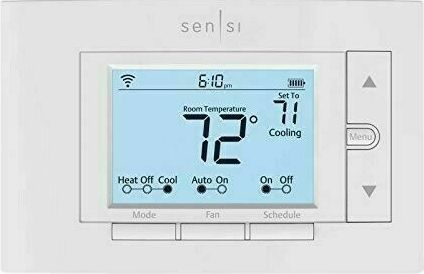

supports Emerson (now Copeland) Sensi ST55:
 
    its 5.88x3.75" covers potentially unpainted wall behind Honeywell.

ST55's fan circulation enabled only by app.
$99 from Amazon, but half that from ebay.
ST55 product page - installation manual - installation video
  - Navigation & Scheduling Guide
  - 'most reliable "set it and forget it" smart thermostat'

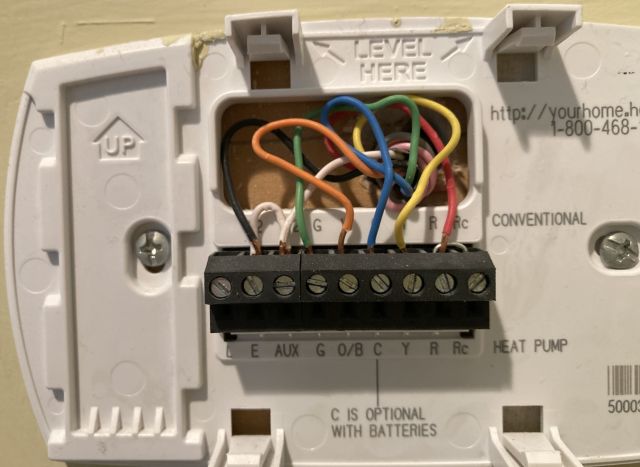

Honeywell wiring

This seemingly jumpers heat pump to emergency heat...?
  • Emergency heat should not run heat pump, only furnace.
  • Aux heat may run both heat pump and furnace.
    Goodman furnace has 2-stage Aux heat...
  • Black wire is NOT connected at furnace (no EHR);
    repurpose white, black wires for Goodman W1, W2.
    Goodman furnaces now have W2, W3 instead of W1, W2,
    presumably considering first heating mode to be heat pump...
Goodman furnace, wiring

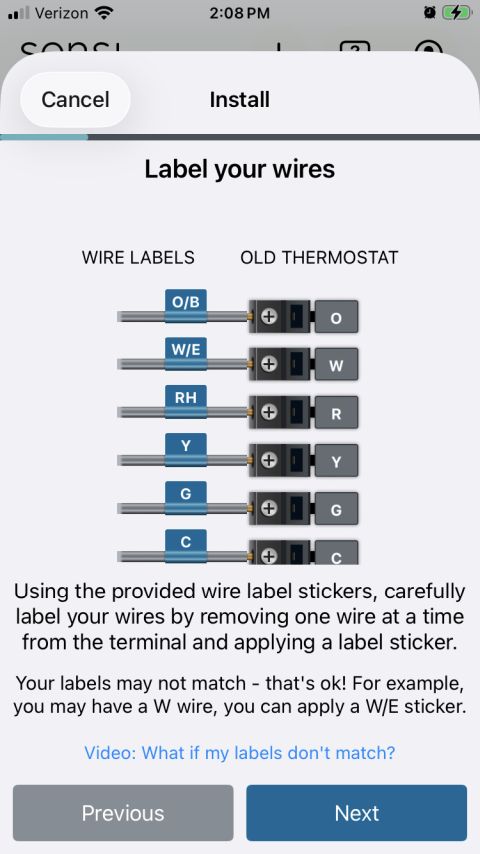

thermostat wiring notes - video - label decoder

Sensi Smart Thermostat compatibility confirmed for AUX G O C Y R:
  also C R G W1 W2 Y O or C R G W1 W2 Y2 O


Instead of OT-1 and OT-2 SPST thermostats,
OT18-60A SPDT disconnects Y from heat pump,
rerouting that 24VAC back to indoor unit W2

Wiring and installing Sensi thermostat

wanted operation
26 Oct:  ST55 base delivered
Connected base C and RH to 24VAC;
with no load, other terminals measured 24VAC wrt C.
2.2k resistor seemingly sufficed
to pull down O/B, Y, G, W/E terminals.

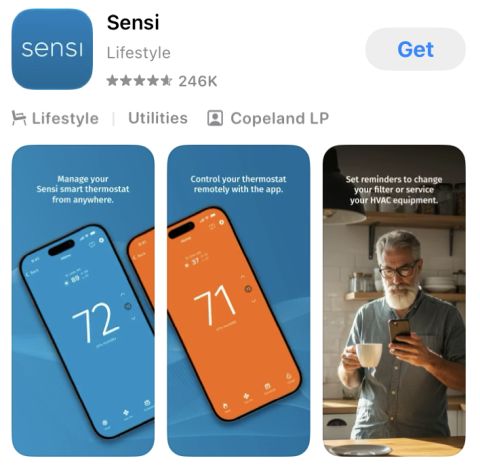

Selecting Sensi app at App Store was somewhat confusing
- not the first option offered
- described as a "Lifestyle" app...??
Registered online, but iPhone Sensi app rejected that
and did not send email for "forgot password".
registered in app, using a different email address...

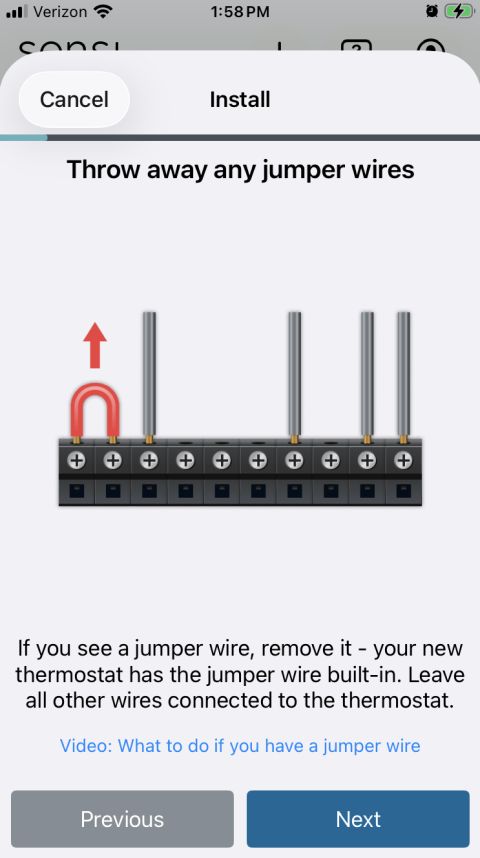

App installation

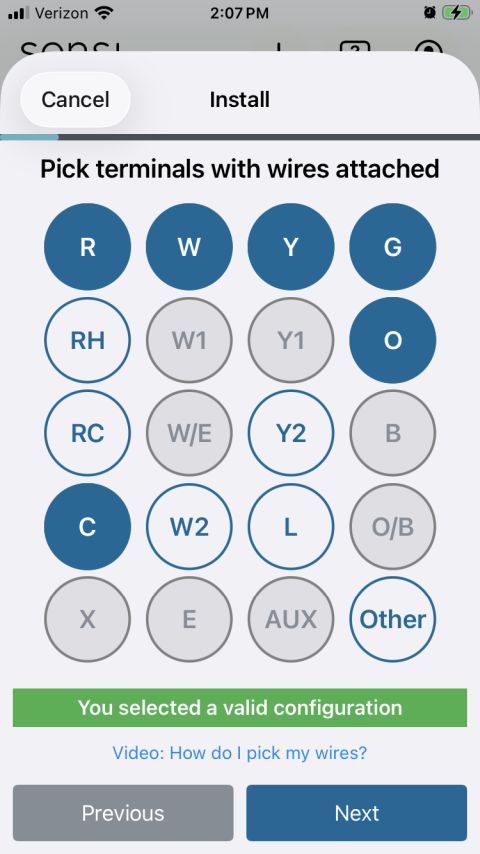

Valid configurations per online tool
were rejected by the app.



Code printed on ST55 back is needed
for app connection to ST55 Wi-Fi server.

Sensi model 22 (mode -> connect)
App immediately reported lost connection;
eero reported
New Device 192.168.4.75
White Rodgers Division 159AC4 Emerson.
App eventually connected...
iPhone presumably switched from ST55 Wi-Fi to jail.

ST55 Wi-Fi recovers after power cycle
different resets

27 Oct:  directly reconfigured ST55 for W2
set fan cycling to 9 minutes per hour
IMPORTANT: WHEN MATCHING THE ASPF AIR HANDLERS
TO A SINGLE SPEED COOLING OR HEAT PUMP UNIT,
REMEMBER TO CONNECT "Y: FROM THE THERMOSTAT TO
THE "Y2" ON THE LOW VOLTAGE TERMINAL BOARD
