Nikon Vertical Illuminators

• UV
• fiber light
• short halogen (no irises; filter slots near dovetails)
• long halogen (6V) version;  chrome knob rotates brightfield-only beam splitter in/out
  provision for drop=in (polarizing) filter.
• (12V) finite Universal version with B/D slider;  use DF also for diascopic
• infinity Universal version for Optiphot 100, 150.

Preparation

1. fully PUSH B.F.
2. turn power ON, set 6V
3. fully open diaphragms
4. Place ND filter on the stage; focus 10x objective on it
5. remove eyepiece; focus lamp filament on objective exit pupil
6. center filament on exit pupil; replace eyepiece

1. nearly focus 40x objective on ND filter
2. insert analyzer
3. remove eyepiece; rotate polarizer for dark cross image:


see also polarizing filters

M Plan 6V Illuminator

Optiphot Universal EPI (infinity) illuminator and head

  .. as used on Optiphot 100
  Adapts Finite Optiphot and Labophot head flange to infinity heads.

bundled with infinity (Eclipse) trinocular head...

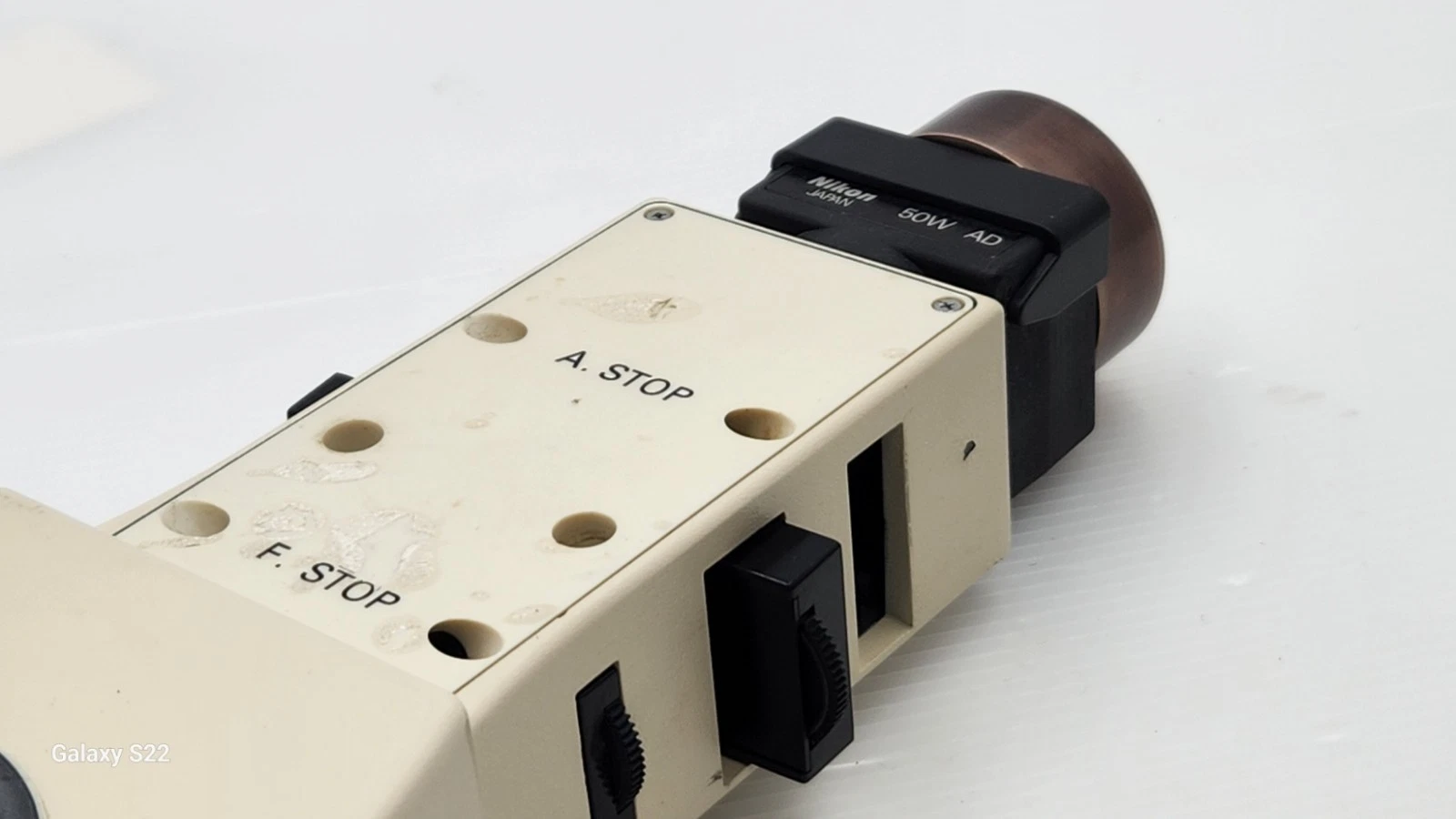

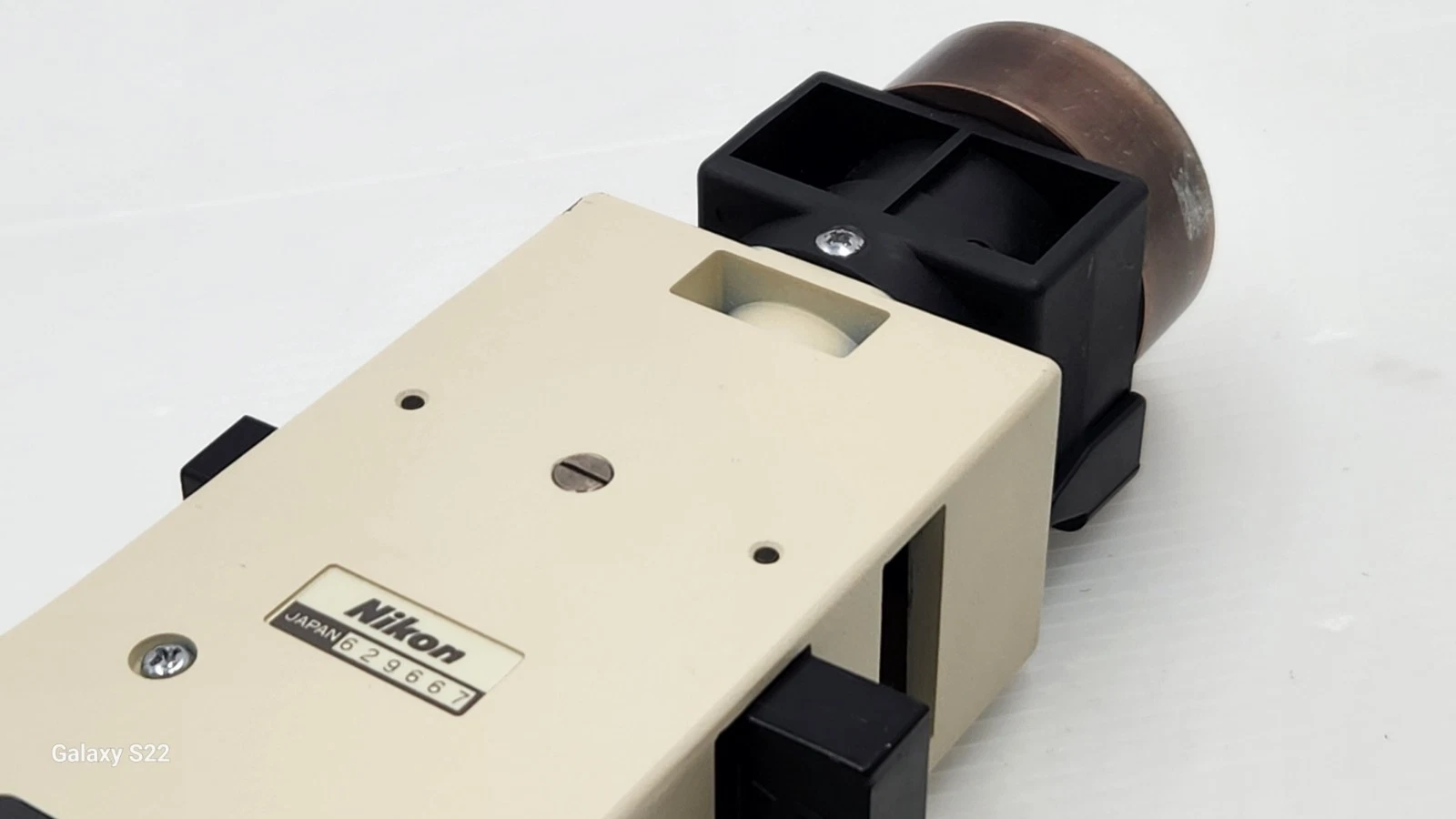

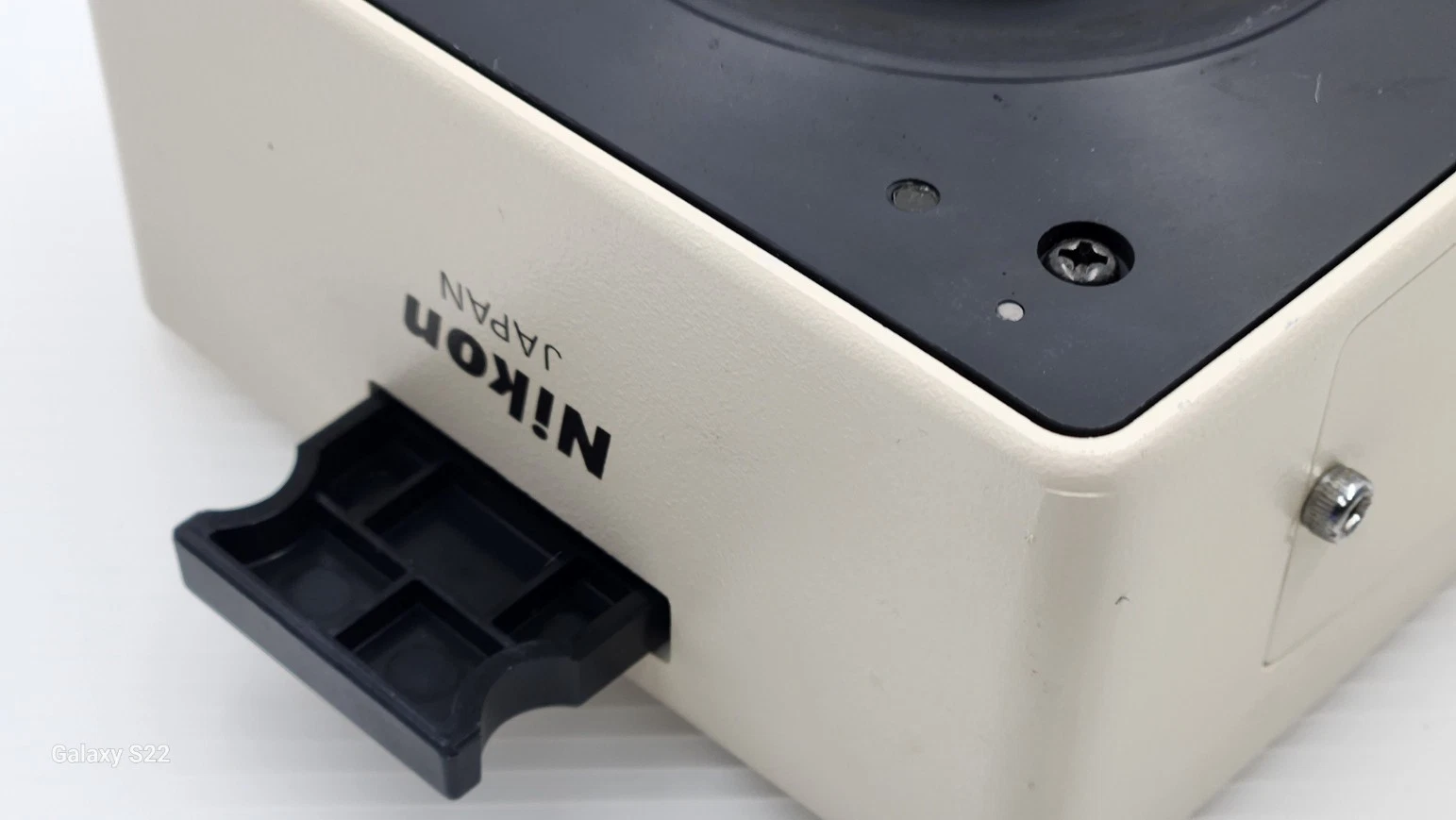

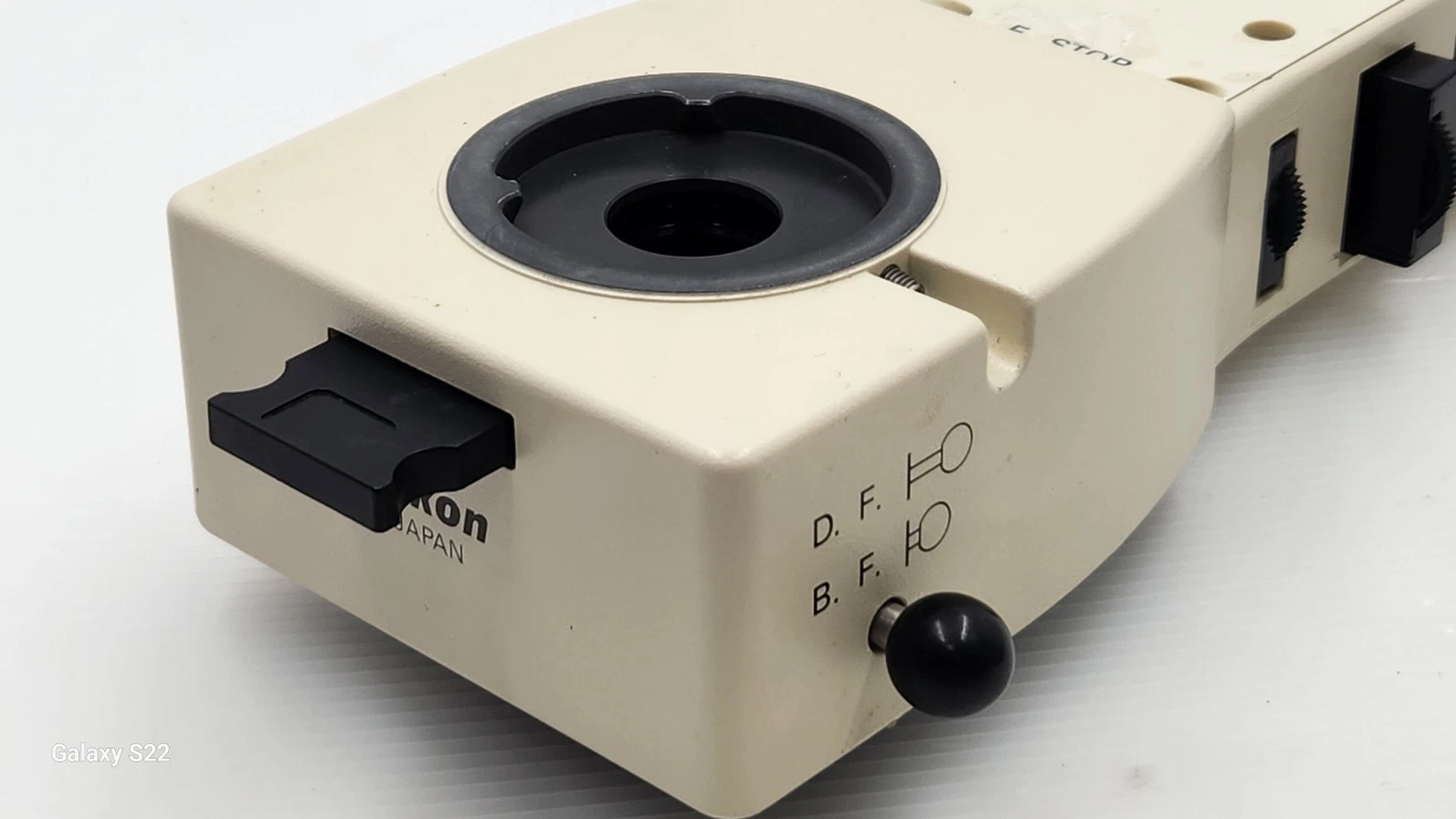

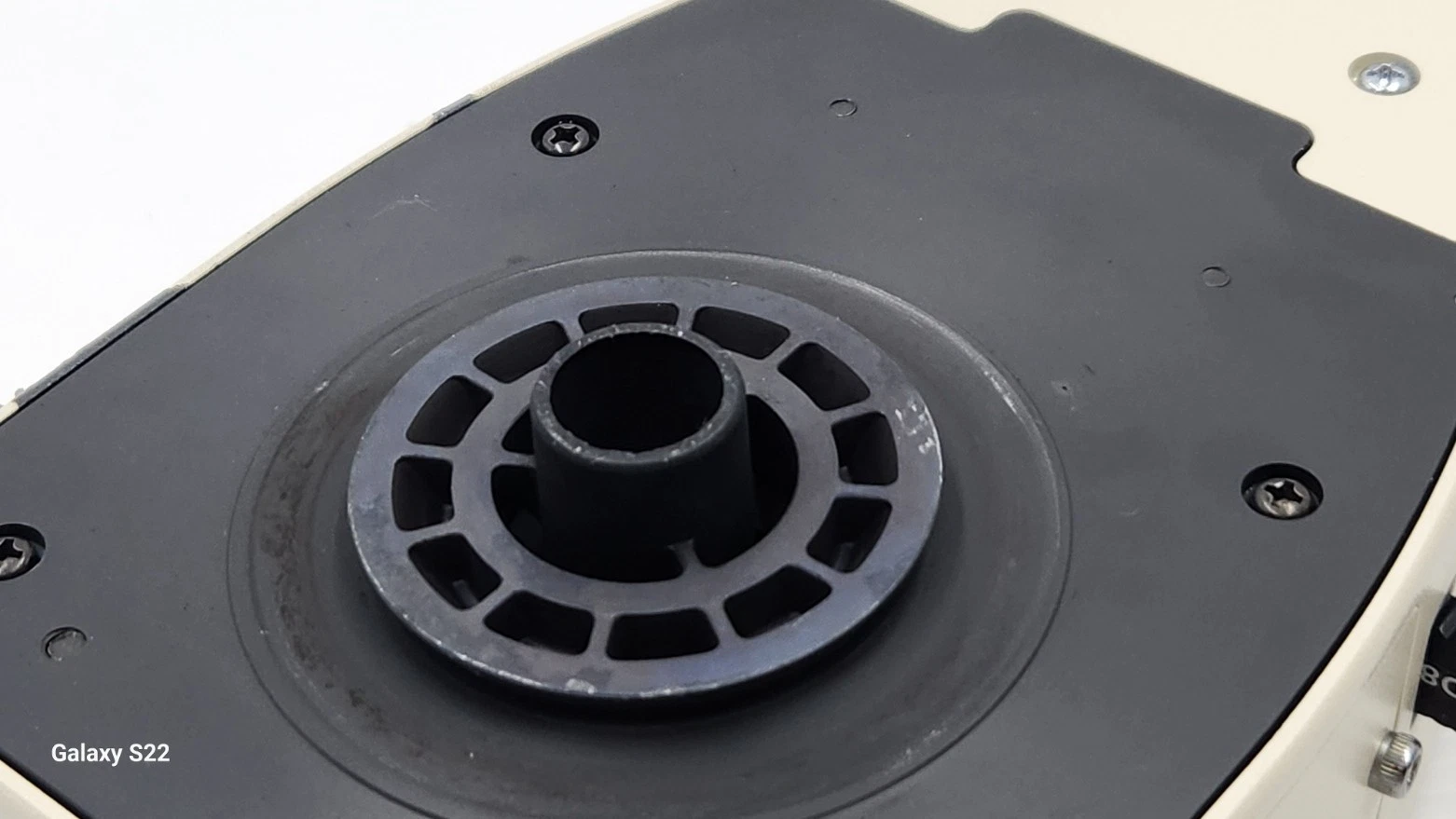

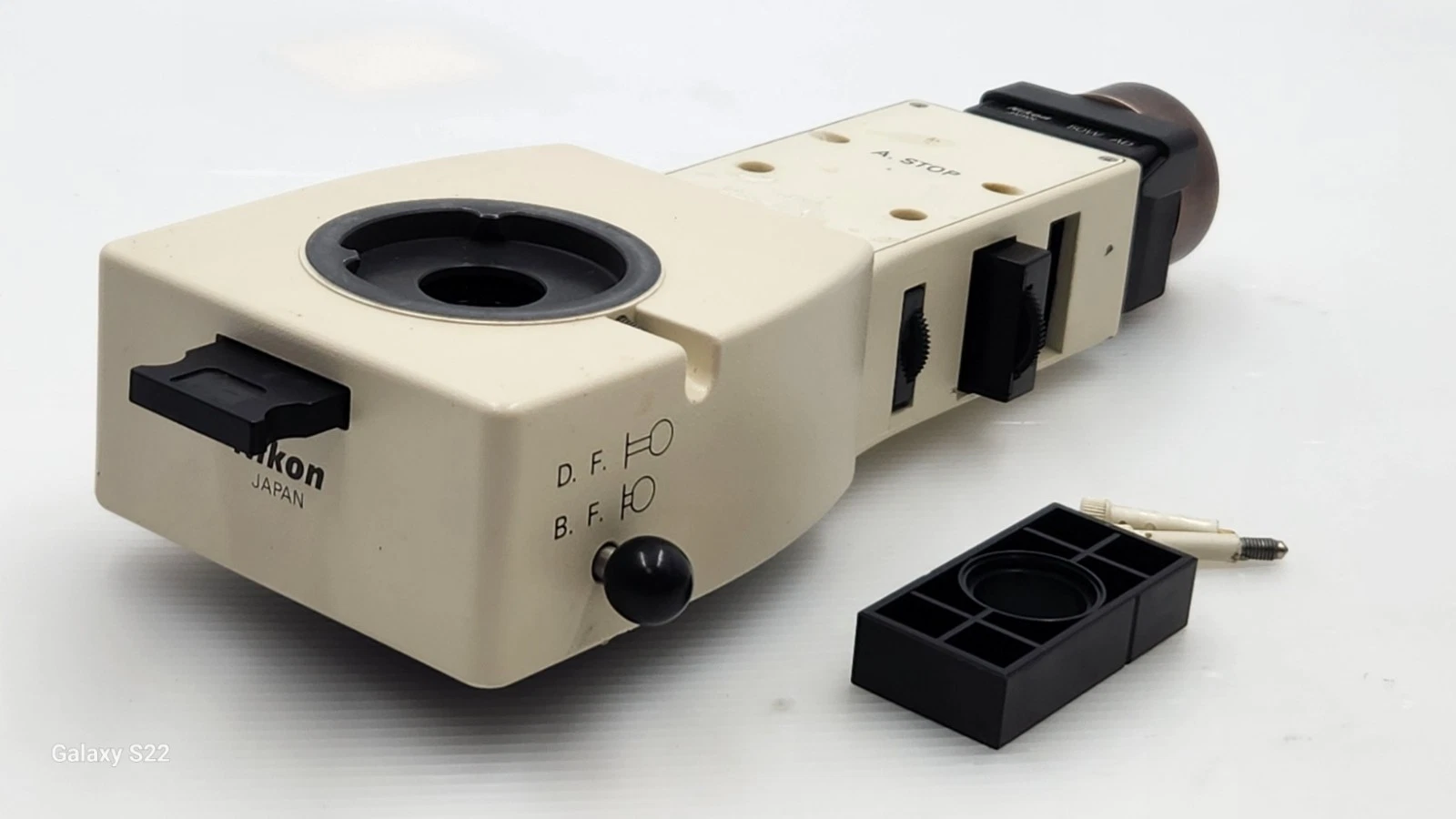

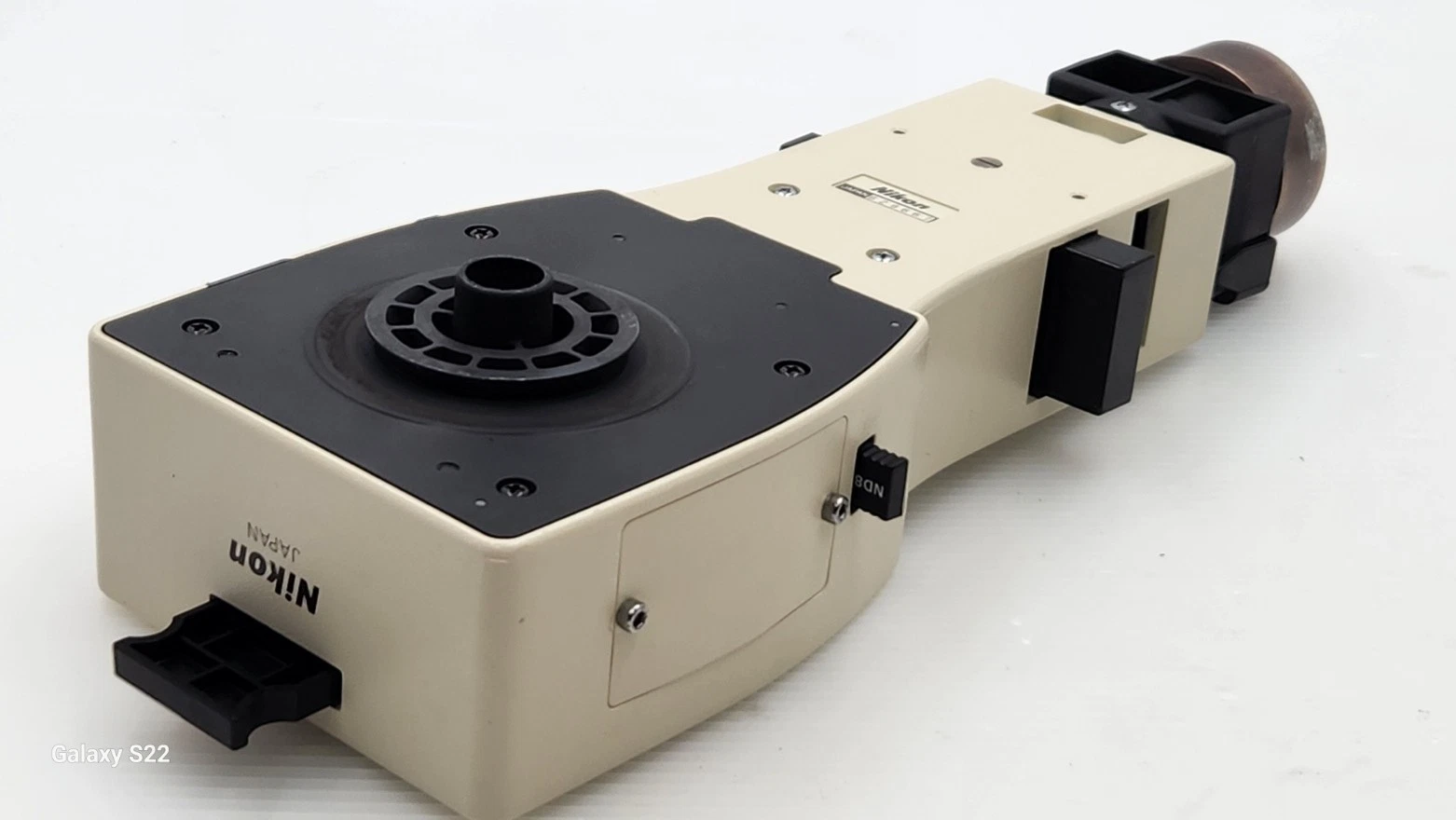

Optiphot 150 illuminator BF/DF 50W

Note:  Optiphot 100/150 vertical illuminators often lack lamp house adapter, as here;
    this illuminator bundles an adapter fitting first generation Optiphot 50W lamp house
    and will be used on an Optiphot 2,
    with the above 100W vertical illuminator on the Optiphot 100 with DIC.

eBay item number: 227101231098
Condition: Used

Appearance: Please check the photo carefully!!
Function:  It works properly.
Opitical System:  As you can see in the video, there is some dirt on the internal mirror,
         but it does not affect the observation. Please think of it as just that much dirt.
