Vintage Astro\Micro-Photography Camera Adapter Accessory by Monolux

Condition: Used
Ended:May 23, 2022, 9:53AM
This is for a vintage used Monolux camera adapter micro-photography and\or Astro-photography to camera adapter. It is in very good condition. Please see photos
---

M42 to 30mm to 23.2mm Microscope Adapter Camera Eyepiece Tube w/ C-mount Thread

eBay item number: [224158403124](https://www.ebay.com/itm/224158403124)


Dear visitors, we are Cnscope, and we are professional microscope supplier

Product Feature:

it is homemade and Multifunction adapter.
The Top male thread is M42*0.75
The outer diameter of the tube is 30mm
the inner diameter is 23.2mm to accept biological Microscope tube
and the end female thread to accept C-mount.
so it is Multi-function and powerful adapter both for Stereo microscope and biological microscope.
more detail to check our picture.
full metal-----Aluminum alloy
High quality and bid it confident.

received 10 Aug 2022
M42x0.75 thread and 30mm o.d. are as advertised,
but i.d. is far too loose for 23.2mm oculars:

... corrected by shimming i.d. with bits of HVAC pressure-sensitive aluminum tape.
MicrobeHunter.com: M42 - 30mm - 23.2mm eye tube adapter warning.


Celestron NexYZ 3 axis Universal Smartphone Adapter

  • rack and pinion XYZ adjustments
  • spring-loaded smartphone clamp
  • spring-loaded and thumbscrew-secured eyepiece clamp with 2 bushings

received 14 Apr 2014

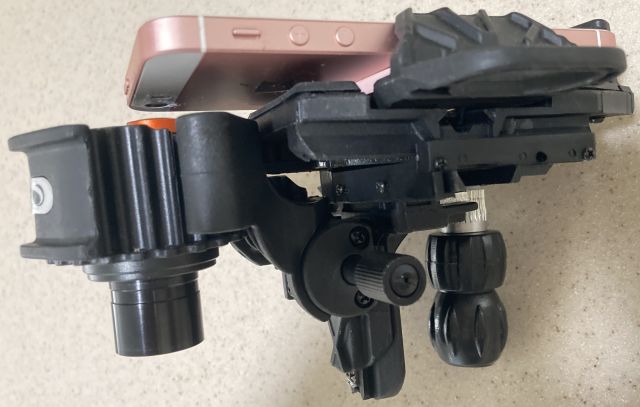

While Z and coaxial XY controls work well, the holder sags:

wanting about 8mm shim between smartphone back bottom and holder
for camera to peer straight into eyepiece.

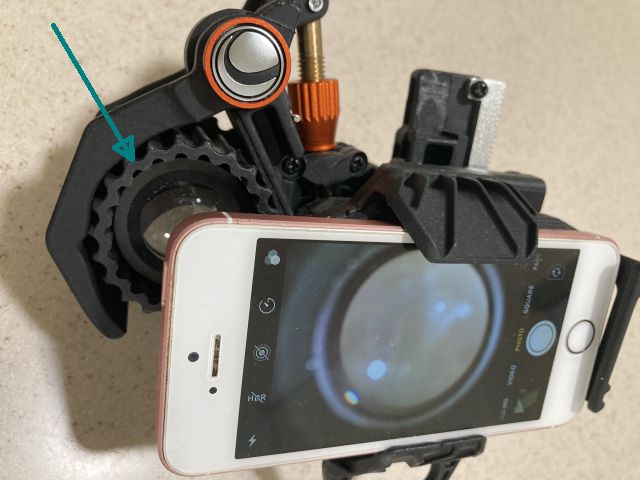

Blame sag on largely polymer construction and corrugated spacer (green arrow):

.. included to compensate for clamp intended mostly for digiscoping,
where sag may be less problematic with nearer vertical smartphone orientation.

An alternative to consider is the less expensive but aluminum SVBONY SV214,
which seems a near copy of the well-regarded tridaptor

with a clamp intended for diameters covering microscope oculars.
