Eye Tube Camera Adapter

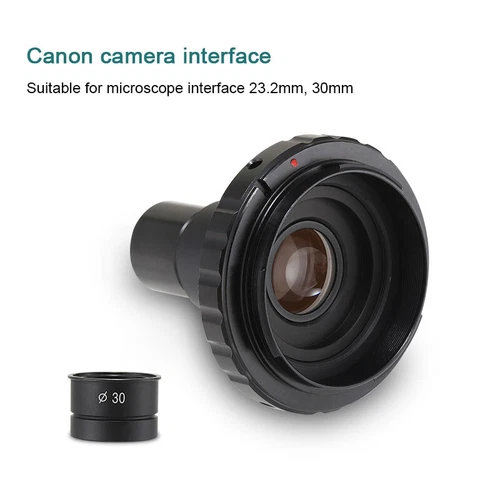

1X SLR Camera Lens Adapter Ring Canon Microscope 23.2mm Interface

item number:   226345877777

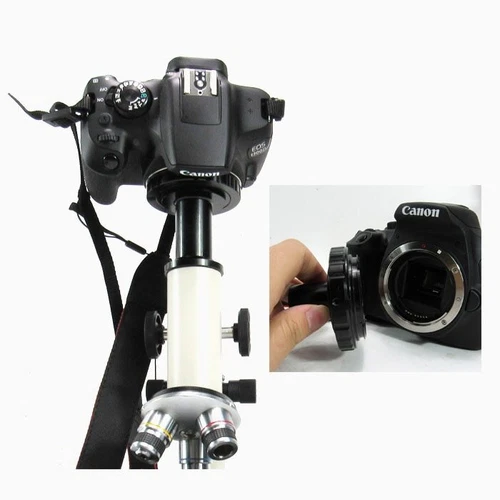

Suit for Canon:
Diameter of microscope connecting cylinder is 23.2mm
1X/8X magnification

IMO, 8X would be too much
No optics in 1X version
received 1 Aug 2025, 24 days after payment

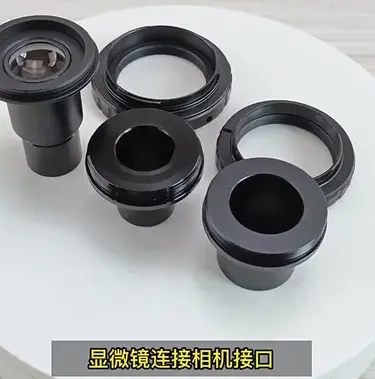

Seller offers 8 combinations:

  • 1x or 8x
  • Canon or Nikon (DSLR only, NOT mirrorless)
  • with or without 30mm eye tube bushing

IMO, 8x would be far too much magnification.
1X version has NO optics;
Glossy finish provokes glare...
camera focus is NOT parfocal to eyepieces.
Lacking relay optic, microscope must be refocused for the camera.
Refocused image is too small for (Canon 6D) 35mm sensor,
would also be too small for APS-C sensor,
and quality is badly impacted (below, right)

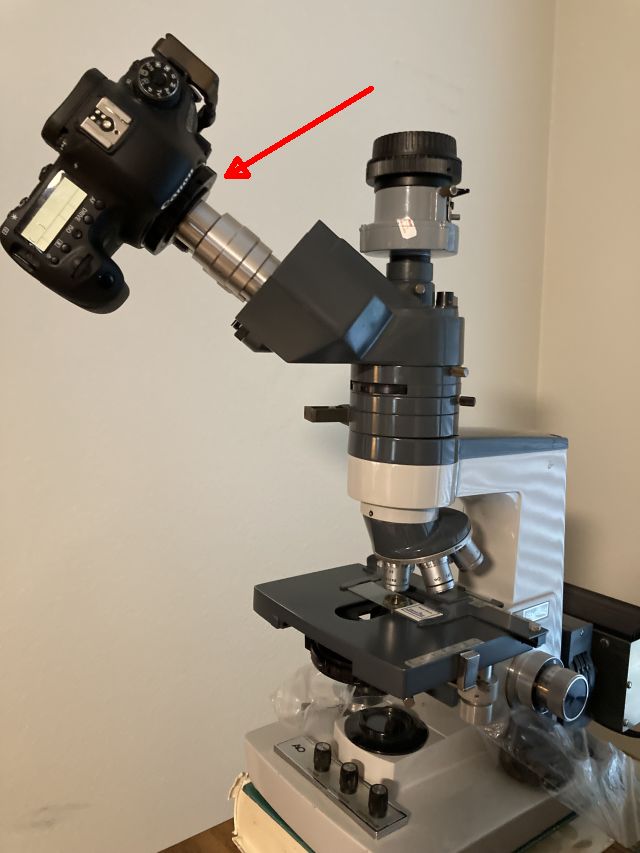

left:  iPhone afocal over eyepiece;   right: by DSLR (red arrow, above)
