TinyUSB for composite USB using Arduino and ESP32-S2-Saola-1

Add TinyUSB to your project

TinyUSB Geneology

Adafruit ported TinyUSB to ESP32-S2 for Metro and FeatherS2 products,
mostly with CircuitPython but also the Arduino IDE.

Adafruit TinyUSB support:: Adafruit TinyUSB Library
GitHub releases: adafruit has https://github.com/adafruit/Adafruit_TinyUSB_Arduino and TinyUF2 Bootloader
Their ESP32 port depends on Espressif's esp32-hal-tinyusb.c for building USB descriptors.
adafruit also has a WebUSB guide

ESP32TinyUSB

This appears to be Expressif's "official" USB library implementation

ESP32TinyUSB Arduino link
ESP32TinyUSB is the chegewara / EspTinyUSB implementation with seemingly useful example sketches..
It includes device examples updated to work with esp32s2
Arduino ESP32TinyUSB library reference (points back to GitHub).
Builds disabling e.g. MSC filesystem support require source code hacking...
ESP32-S2 TinyUSB composite reconfiguration

limited endpoints

ESP32-S2 provides 6 endpoint pairs, not counting pair 0.
Only 5 IN endpoints can be active at a time, so usually just 5 pairs available.
Device endpoint requirements for each instance:
- Endpoint pair 0 is always reserved for USB setup and control
- MIDI: 1 IN/OUT pair
- CDC: 1 IN/OUT pair for data + 1 IN endpoint for control
- HID: 1 IN/OUT pair
MIDI was broken by midiusb.cpp:#define EPNUM_MIDI 0x05; fix by changing to 0x04

current assignments:

grep -R EPNUM_ libraries | grep 0x | grep define
libraries/ESP32TinyUSB/src/device/cdc/cdcusb.cpp:#define EPNUM_CDC   0x02
libraries/ESP32TinyUSB/src/device/hid/hidcomposite.cpp:#define EPNUM_HID 0x03
libraries/ESP32TinyUSB/src/device/hid/hidgamepad.cpp:#define EPNUM_HID   0x03
libraries/ESP32TinyUSB/src/device/hid/hidgeneric.cpp:#define EPNUM_HID   0x03
libraries/ESP32TinyUSB/src/device/hid/hidkeyboard.cpp:#define EPNUM_HID 0x02
libraries/ESP32TinyUSB/src/device/hid/hidmouse.cpp:#define EPNUM_HID 0x03
libraries/ESP32TinyUSB/src/device/hid/hidusb.cpp:#define EPNUM_HID   0x03
libraries/ESP32TinyUSB/src/device/midi/midiusb.cpp:#define EPNUM_MIDI 0x04
libraries/ESP32TinyUSB/src/device/msc/mscusb.cpp:#define EPNUM_MSC 0x04
libraries/ESP32TinyUSB/src/webusb.h:#define EPNUM_VENDOR 0x04

This should allow CDC (1 & 2), gamepad (3) and MIDI (4) to play together..
EspTinyUSB configuration (including serial number) is discussed here
If more than one ESP32-S2 module will be connected to a single USB host (e.g., Windows PC),
different serial numbers should be set

TinyUSB MIDI

Create Custom USB Devices with the esp32s2Stick

ESP32-S2 Hardware USB connection

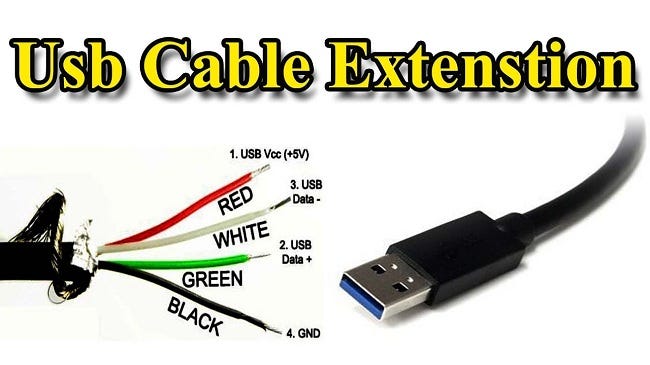

USB cable preparation

USB GND should be connected to ESP32-S2 Board GND
USB signalling is differential, but signal voltages are still relative to device ground.

USB CDC device

Provided cdc.ino sketch loaded and ran fine, after re-enabling MSC and DFU devices...

USB HID device

Provided gamepad.ino sketch loaded and ran,
joy.cpl detected ESP32S2 arduino device, but Test showed no activity...
- Serial message were added to the sketch;
  if(!digitalRead(0)) was never true while using joy.cpl...
- Another Gamepad.ino had no such test.
- ESP32S2 arduino devices > Properties > Test
  got busy after rebuilding with that test defeated.
- Meanwhile, there was also a LOT of serial traffic from Hidusb.cpp:
```
...
...
[ 74914][D][hidusb.cpp:37] write(): len: 11
[ 75013][D][hidusb.cpp:36] write(): write hid:
[ 75014][D][hidusb.cpp:37] write(): len: 11
[ 75113][D][hidusb.cpp:36] write(): write hid:
[ 75114][D][hidusb.cpp:37] write(): len: 11
...
```
- Commenting out 2 logging lines in hidusb.cpp stiffled that traffic.
Note: Windows' Game Controllers > Test only updates while it has focus.

USB MIDI device

using Midi View to look for EspTinyUSB-2.0.0 MIDI traffic
midi-test loaded and ran, but no MIDI device was detected

midi.ino loaded and ran; MIDI CLASS was detected, but with no traffic, despite serial monitor output:

ESP-ROM:esp32s2-rc4-20191025
Build:Oct 25 2019
rst:0x1 (POWERON),boot:0x8 (SPI_FAST_FLASH_BOOT)
SPIWP:0xee
mode:DIO, clock div:2
load:0x3ffe6100,len:0x570
load:0x4004c000,len:0xa50
load:0x40050000,len:0x28d8
entry 0x4004c18c
[   580][D][usb_descriptors.cpp:45] getConfigurationDescriptor(): descriptor length: 101

[   581][D][esptinyusb.cpp:48] esptinyusbtask(): USB tud_task created
[  1582][V][midiusb.cpp:88] setSong(): MThd format => 0

MTrk
[  1583][V][midiusb.cpp:103] setSong(): song => 40, i = 40

invoking midi.playSong()
[  1593][V][midiusb.cpp:145] playSong(): play
[  1594][V][midiusb.cpp:151] playSong(): delta => 40, _byte = 90

[  2106][V][midiusb.cpp:28] noteON(): ON: 65

[  2107][V][midiusb.cpp:181] playSong(): on
[  2107][V][midiusb.cpp:151] playSong(): delta => 0, _byte = 90

[  2109][V][midiusb.cpp:28] noteON(): ON: 60

[  2113][V][midiusb.cpp:181] playSong(): on
[  2117][V][midiusb.cpp:151] playSong(): delta => 0, _byte = 90
...

commented out log_v's in midiusb.cpp:

ESP-ROM:esp32s2-rc4-20191025
Build:Oct 25 2019
rst:0x1 (POWERON),boot:0x8 (SPI_FAST_FLASH_BOOT)
SPIWP:0xee
mode:DIO, clock div:2
load:0x3ffe6100,len:0x570
load:0x4004c000,len:0xa50
load:0x40050000,len:0x28d8
entry 0x4004c18c
[   558][D][usb_descriptors.cpp:45] getConfigurationDescriptor(): descriptor length: 101

[   558][D][esptinyusb.cpp:48] esptinyusbtask(): USB tud_task created
[  1560][V][midiusb.cpp:88] setSong(): MThd format => 0
[  1561][V][midiusb.cpp:95] setSong(): MTrk
[  1561][V][midiusb.cpp:103] setSong(): song => 40, i = 40
invoking midi.playSong()
[  1574][V][midiusb.cpp:145] playSong(): play
[ 94030][V][midiusb.cpp:135] parseMeta(): meta => 2f, n = 2
[ 94031][V][midiusb.cpp:191] playSong(): unknown note: x0
[ 94526][V][midiusb.cpp:191] playSong(): unknown note: x30
[ 95334][V][midiusb.cpp:191] playSong(): unknown note: x0
[ 97702][V][midiusb.cpp:171] playSong(): ctrl x0 x0
[ 97870][V][midiusb.cpp:191] playSong(): unknown note: x14
[ 99886][V][midiusb.cpp:191] playSong(): unknown note: x3f
[101926][V][midiusb.cpp:135] parseMeta(): meta => 3f, n = ffffffff

GitHub:
